Mondraker renews its Dune range for electric enduro

Mondraker rescues the Dune to convert it into a lightweight electric enduro bike that combines both maneuverability and performance of the most extreme ranges. The model comes with Bosch Performance Line SX motor, mullet wheels, and three different setups starting at 7,999 euros.

Mondraker Dune: electric assistance for an enduro of sensations and power

E-bikes are increasingly gaining a larger share of the cycling market, and brands are striving to respond to this trend that, for now, shows no signs of slowing down. Specifically, manufacturers are working to include in their catalogs the lightweight electric bikes, which, with a growing number of followers, have been in high demand for some time. Thus, Mondraker launched less than a year ago the NEAT -their first lightweight e-bike- and now they are back with the Dune.

RECOMENDADO

Take the curves like a professional

When do helmets have to be changed? Do they have an expiration date?

Tips for climbing faster on the road

Tips to overcome the fear of falling off a bike

The Swiss Side AERO socks make you faster and are legal

A real workout saver of only 56 min on the turbo trainer

The Mondraker Dune was born in 2009 with the aim of becoming a reference enduro bike -being the first bike to incorporate the acclaimed Zero Suspension System- and disappeared from the catalog in 2020. However, the Alicante-based brand now rescues the Dune with the goal of maintaining the enduro essence that characterized it.

The Dune is positioned, in short, halfway between the NEAT and the Superfoxy and the Level -the brand's more beastly enduro bikes; muscular and electric, respectively-.

The model is built on a Stealth Air Carbon frame weighing 2,650 grams -without shock- and features 170mm front suspension -except for the XR version, with 180mm- and 165mm rear suspension with the Updated Zero Suspension System kinematics -increased rigidity, absorption capacity, initial operating sensitivity, and reduced weight-.

The frame, characterized by angular shapes and flat sides, houses the Bosch Performance Line SX motor with 55 Nm, maximum power of 600 W, and four configurable assistance modes. Additionally, it is powered by a 400 Wh battery -with the option to add the Bosch Powermore range extender of 250 Wh-. It also comes with mullet wheels.

Mondraker has incorporated the Forward Geometry with a generous reach of 465 mm, 64º head angle, effective seat angle of 77.1º, and 445 mm chainstays. Except for the chainstays, these measurements change slightly in the XR version: reach of 460 mm, 63.6º head angle, and 77.5º effective seat angle

On the other hand, the Dune features internal cable routing through the head tube, fender integrated into the shock, rubber protections on the rear triangle, two bottle cage mounts, UDH derailleur hanger and clearance for up to 66 mm wide tires (2.6").

Mondraker Dune: setups and prices

Below, we detail the setups of the complete range of the Mondraker Dune, all available in four sizes.

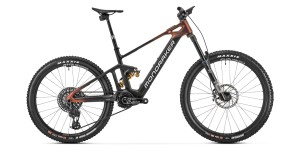

Mondraker Dune XR

• Frame: Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry
• Fork: Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge
• Shock: Öhlins TTX22M.2 205x65mm
• Motor: Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
• Battery: Bosch Compact Powertube 400Wh
• Derailleur: SRAM Eagle AXS Pod MMX, 12s
• Cassette: SRAM XS-1295, 10-52T, T-Type, 12s
• Seatpost: RockShox Reverb Stealth AXS, diameter: 31.6mm
• Saddle: Fizik Terra Aidon Slim X5, 145mm
• Brakes: SRAM Code Ultimate Stealth
• Tires: Maxxis Assegai 29x2.5WT / Maxxis Minion DHR II 27.5x2.4 WT
• Price: 11,999 euros

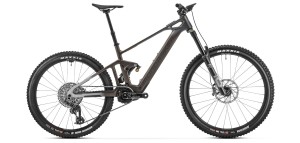

Mondraker Dune RR

• Frame: Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry
• Fork: Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge
• Shock: Öhlins TTX Air 205X65mm
• Motor: Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
• Battery: Bosch Compact Powertube 400Wh
• Derailleur: SRAM Eagle AXS Pod MMX, 12s
• Cassette: SRAM XS-1275, 10-52T, T-Type, 12s
• Seatpost: Onoff Pija dropper internal, diameter: 31.6mm
• Saddle: Fizik Terra Aidon Slim X5, 145mm
• Brakes: SRAM Code Bronze Stealth
• Tires: Maxxis Assegai 29x2.5WT / Maxxis Minion DHR II 27.5x2.4 WT
• Price: 9,499 euros

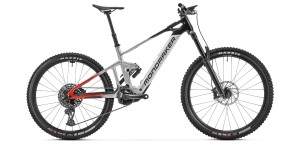

 Mondraker Dune R

• Frame: Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry
• Fork: FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned
• Shock: Fox Float X Performance EVOL
• Motor: Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
• Battery: Bosch Compact Powertube 400Wh
• Derailleur: SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click
• Cassette: SRAM PG-1230, 11-50T, 12s
• Seatpost: Onoff Pija dropper internal, diameter: 31.6mm
• Saddle: Fizik Terra Aidon Slim X5, 145mm
• Brakes: SRAM DB8
• Tires: Maxxis Assegai 29x2.5WT / Maxxis Minion DHR II 27.5x2.4 WT
• Price: 7,999 euros

You can find more information on Mondraker's website.
