New Orbea Occam 2024: information, models and prices

Mountain bike 05/10/23 16:00 Migue A.

The Orbea Occam 2024 is here. The Basque manufacturer has presented the fifth generation of the Occam, which the brand divides into two families to emphasize each of the two souls that live inside: the balanced Occam SL for a conventional trail and the all-terrain Occam LT for an aggressive trail that approaches enduro. In total, 11 setups have been launched starting at 2,799 euros.

Orbea Occam 2024: versatility that exudes adventure

Orbea evolves the Occam for the fifth time with a renovation that promises to be better than its predecessors. Versatility is the starting point for this trail model which, by definition, is the discipline that combines pedaling efficiency with downhill capability. Knowing that the Occam navigates between these two worlds, each version reinforces one of these facets.

The Orbea Occam, therefore, is divided into two models that try to satisfy two types of cyclists who, although they share the same adventurous spirit, have different objectives.

Free alternatives to Zwift

Do you need suspension on your gravel bike?

Black Friday 2024 for cyclists

The Van Rysel NCR CF is a best-seller in carbon and is now discounted to a price few would imagine

When do helmets have to be changed? Do they have an expiration date?

A real workout saver of only 56 min on the turbo trainer

Orbea Occam SL, efficiency and balance

This model aims to bite into a part of the pie in which there is normally little on offer. This is a trail bike that stands out for offering great pedaling efficiency - it handles the same values as a cross country bike, according to Orbea - and is a bike designed to withstand long distances and combine both climbs and descents.

The Occam SL has a geometry that prioritizes control and downhill capabilities. Translated into numbers, the size L has a 65.5° head angle, 78° seat tube angle, 490 mm reach and 440 mm chainstays.

Suspensions have 140 mm of travel both front and rear, giving the Occam SL a good amount of cushioning, while the FOX 34+ Float shock is more capable than its predecessor.

Remote lockout comes to trail bikes for the first time. The simple I-Line operation of the Squidlock control - integrated in the brake clamp - allows locking and unlocking of the shock and dropper post without difficulty. The kinematics are also strengthened by improving the previous antisquad and antirise data.

The weight is another argument in favor of this version, since the lightest setup is 10.85 kilograms.

Occam LT, aggressiveness just one step away from enduro

The Occam LT is a trail bike with an enduro spirit. In this case, Orbea has squeezed the design to change some key geometry numbers and increase suspension travel. The result is what you'd expect: a more aggressive model that doesn't fall into the enduro category, but is very close to it.

The geometry is one of the most important aspects to understand what differentiates the Occam LT from the Occam SL. The brand has opted for a flip chip for which you only have to loosen one bolt and pull the top tube slightly upwards. These modifications adjust the bottom bracket height by 8 mm and the head angle by half a degree.

As for the most important measurements, the head angle is 64°-64.5°, the seat tube 77°-77.5°, bottom bracket drop 36-28 mm, reach 480-485 mm and chainstays 440 mm.

On the other hand, the progressive suspension has 160 mm of travel at the front and 150 mm at the rear.

Moreover, it has some points in common with the Rallon, such as progressivity and anti-squad and anti-rise values.

Occam SL y LT, there are reasons to share

Both models have some features in common. Firstly, in both versions the frame is asymmetrical and is offered in both carbon and aluminium.

Orbea has put emphasis on the headtube and bottom bracket to avoid wrinkles and irregularities "in critical areas" in order to use less carbon, as well as improving the stiffness-to-weight ratio by adding high modulus, high strength fibres to its standard layup.

The aluminium models have polished welds for a monocoque look and many of the tubes are double or triple butted. In addition, stiffness has also been increased.

With Steep'n'Deep technology, the seat tube can accommodate a dropper post up to 230mm. This, combined with short seat tubes, allows the rider to choose the size of reach they are most comfortable with.

Other shared technologies include the SIC system, a completely sealed internal cable routing that is quieter and more reliable, and Second Skin, replaceable vinyl protectors that offer new designs and keep the paint intact for longer.

Orbea has chosen OQUO Mountain Performance -in the case of the SL- and OQUO Mountain Control -in the case of the LT- wheels for most of the set-ups. The brand has included in both versions the renewed LOCKR compartment for storing tools or food and has installed co-moulded polymer protectors that protect the frame, among other improvements.

Orbea Occam: setups and prices

Below, we present all the setups for the Occam SL and Occam LT. Both versions are available in four sizes - S, M, L and XL - and can be customised with Orbea's MyO program where customers can choose unique setups or aesthetic finishes.

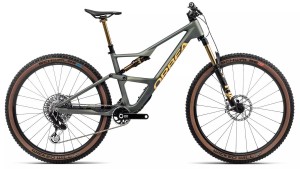

Orbea Occam SL M-LTD

Frame: Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels
Fork: Fox 34 Float Factory 140 FIT4 Remote-Adjust Push-lock 2 Position QR15x110 Kashima
Shock: Fox Float Factory Remote Push-lock Evol Kashima custom tune 210x50mm
Rear derailleur: SRAM XX Eagle AXS
Crankset: SRAM XX Eagle Dub Black 32t; SRAM XX-1297 Eagle 10-52t 12-Speed
Brakes: SRAM Level Ultimate 4 piston Stealth Hydraulic Disc
Saddle: Fizik Terra Ridon X1 145mm
Wheels: Oquo Mountain Performance MP30LTD, carbon hookless rim, DT240 S CL hub, 30mm internal width, Sapim CX-Ray TCS spokes, 29”
Price: 9,999 euros

Orbea Occam SL M10

Frame: Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels
Fork: Fox 34 Float Factory 140 FIT4 Remote-Adjust Push-lock 2 Position QR15x110 Kashima
Shock: Fox Float Factory Remote Push-lock Evol Kashima custom tune 210x50mm
Rear derailleur: Shimano XT M8100 SGS Shadow Plus
Crankset: Shimano XT M8120 32t; Shimano CS-M7100 10-51t 12-Speed
Brakes: Shimano XT M8120 Hydraulic Disc
Saddle: Fizik Terra Ridon X5 145mm
Wheels: Oquo Mountain Performance MP30TEAM, carbon hookless rim, DT350 CL hub, 30mm internal width, Sapim D-Sprint spokes, 29”
Price: 5,999 euros

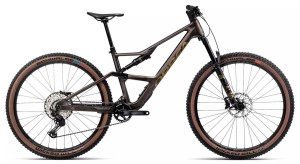

Orbea Occam SL M30

Frame: Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels
Fork: Fox 34 Float Performance 140 Remote Push-lock QR15x110
Shock: Fox Float Performance Remote Pushlock Evol custom tune 210x50mm
Rear derailleur: Shimano XT M8100 SGS Shadow Plus
Crankset: Race Face Aeffect 32t; Shimano CS-M7100 10-51t 12 Speed
Brakes: Shimano M6100 Hydraulic Disc
Saddle: Fizik Terra Ridon X5 145mm
Wheels: Race Face AR 30c Tubeless Ready
Price: 4,499 euros

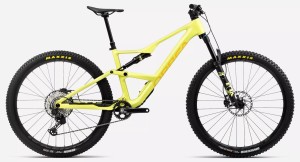

Orbea Occam SL H10

Frame: Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels. Linkage compatible with OC multitool
Fork: Fox 34 Float Performance 140 Remote Push-lock QR15x110
Shock: Fox Float Performance Remote Pushlock Evol custom tune 210x50mm
Rear derailleur: Shimano XT M8100 SGS Shadow Plus
Crankset: Shimano XT M8120 32t; Shimano CS-M7100 10-51t 12-Speed
Brakes: Shimano XT M8100 Hydraulic Disc
Saddle: Fizik Terra Ridon X5 145mm
Wheels: Race Face AR 30c Tubeless Ready
Price: 3,799 euros

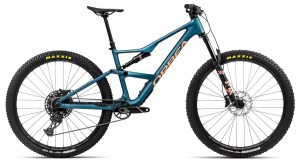

Orbea Occam SL H20

Frame: Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels. Linkage compatible with OC multitool
Fork: Fox 34 Float Performance 140 Remote Push-lock QR15x110
Shock: Fox Float Performance Remote Pushlock Evol custom tune 210x50mm
Rear derailleur: SRAM GX Eagle Lunar
Crankset: SRAM Descendant 6K Eagle Dub 32t; SRAM PG-1230 Eagle 11-50t 12-Speed
Brakes: Shimano M6100 Hydraulic Disc
Saddle: Fizik Terra Ridon X5 145mm
Wheels: Race Face AR 30c Tubeless Ready
Price: 3,599 euros

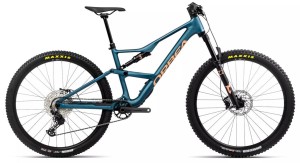

Orbea Occam SL H30

Frame: Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels. Linkage compatible with OC multitool
Fork: Marzocchi Bomber Z2 140 Remote Push-Lock QR15x110
Shock: Fox Float Performance Remote Pushlock Evol custom tune 210x50mm
Rear derailleur: Shimano Deore M6100 SGS Shadow Plus
Crankset: Forged alloy, 32t; Shimano CS-M6100 10-51t 12 Speed
Brakes: Shimano MT201 Hydraulic Disc
Saddle: Selle Royal 2058 DRN
Tyres: Maxxis Dissector 2.40” 60 TPI 3CMaxxTerra Exo TLR; Maxxis Rekon 2.40” FB 60 TPI Dual Exo TR
Price: 2,799 euros

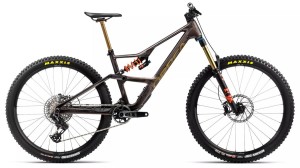

Orbea Occam LT M-Team

Frame: Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels
Fork: Fox 36 Float Factory 160 Grip2 QR15x110 Kashima
Shock: Fox DHX Factory 2-Position Adjust custom tune 210x55mm
Rear derailleur: SRAM X0 Eagle AXS
Crankset: SRAM X0 Eagle Dub Black 32t; SRAM GX-1275 Eagle 10-52t 12-Speed
Brakes: SRAM Code Silver Hydraulic Disc
Saddle: ERGON SM Enduro Comp Men S/M
Wheels: Oquo Mountain Control MC32TEAM, alloy hookless rim, DT350 6IS hub, 30mm internal width, Sapim D-Sprint / Race spokes, 29”
Price: 7,999 euros

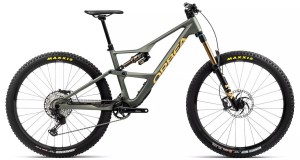

Orbea Occam LT M10

Frame: Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels
Fork: Fox 36 Float Factory 160 Grip2 QR15x110 Kashima
Shock: Fox FLOAT X Factory 2-Position Adjust Evol LV Kashima custom tune 210x55mm
Rear derailleur: Shimano XT M8100 SGS Shadow Plus
Crankset: Race Face Turbine 32t; Shimano CS-M7100 10-51t 12-Speed
Brakes: Shimano XT M8120 Hydraulic Disc
Saddle: ERGON SM Enduro
Wheels: Oquo Mountain Control MC32TEAM, alloy hookless rim, DT350 6IS hub, 30mm internal width, Sapim D-Sprint / Race spokes, 29”
Price: 5,999 euros

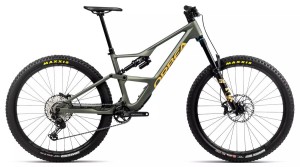

Orbea Occam LT M30

Frame: Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels
Fork: Fox 36 Float Performance 160 Grip 3-Position QR15x110
Shock: Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Rear derailleur: Shimano XT M8100 SGS Shadow Plus
Crankset: Race Face Aeffect 32t; Shimano CS-M7100 10-51t 12-Speed
Brakes: Shimano M6120 Hydraulic Disc
Saddle: ERGON SM Enduro
Wheels: Race Face AR 30c Tubeless Ready
Price: 4,699 euros

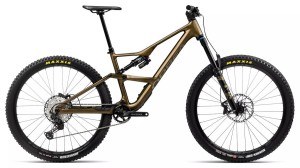

Orbea Occam LT H20

Frame: Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels. Linkage compatible with OC multitool
Fork: Fox 36 Float Performance 160 Grip 3-Position QR15x110
Shock: Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Rear derailleur: Shimano XT M8100 SGS Shadow Plus
Crankset: Race Face Aeffect 32t; Shimano CS-M7100 10-51t 12 Speed
Brakes: Shimano M6120 Hydraulic Disc
Saddle: ERGON SM Enduro
Wheels: Race Face AR 30c Tubeless Ready
Price: 3,799 euros

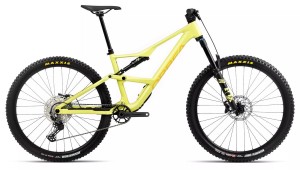

Orbea Occam LT H30

Frame: Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29” wheels. Linkage compatible with OC multitool
Fork: Fox 36 Float Performance 160 Grip 3-Position QR15x110
Shock: Fox FLOAT Performance 2-Position Evol custom tune 210x55mm
Rear derailleur: Shimano Deore M6100 SGS Shadow Plus
Crankset: Forged alloy, 32t; Shimano CS-M6100 10-51t 12 Speed
Brakes: Shimano MT420 Hydraulic Disc
Saddle: Selle Royal 2058 DRN
Tyres: Maxxis Minion DHF 2.50” FB 60 TPI 3C Maxx Terra Exo TR
Price: 3,299 euros

You can find further information and all the setup options on the Orbea website. The brand has also announced that it is preparing the launch of the new Rallon for this October.
