New Mondraker F-Podium 2024: information, models and prices

Mountain bike 03/10/23 20:00 Migue A.

The Mondraker F-PODIUM 2024 starts at 4,999€ with a new design with a more compact swingarm and optimized geometry that improves the bike's overall performance, lowers weight and debuts the UPDATED ZERO SUSPENSION SYSTEM.

The Mondraker F-Podium 2024 evolves its Down Country concept to gain pedaling efficiency without losing downhill capabilities

Índice

Keys features of the new Mondraker F-Podium 2024
Presentation of the new F-Podium 2024
The Mondraker F-Podium 2024 evolves to a higher level
UPDATED ZERO SUSPENSION SYSTEM: Mondraker's legendary suspension system gets an update
Mondraker F Podium 2024: models and prices

Keys features of the new Mondraker F-Podium 2024

New full carbon Stealth Air Carbon frame: loses the 'hump' of the top tube, the seat tube is straight and the rear swingarm is completely changed.
Cable routing hidden and guided by the head tube
2 bottle cage
29" wheels and accommodates up to 2.4" tyres
Updated Zero Suspension System for improved absorption and progressivity
120mm front travel and 110mm rear, across the range
Trunnion 165x45mm shock absorber
Stiffer and lighter, improves pedaling efficiency and gains downhill sensitivity
Changes geometry (Forward Geometry), the steering angle relaxes up to 66.5º.
Available in 4 sizes: S, M, L and XL
Price from 4.999€ to 10.999€ (below you will find all the models and prices of the range)

Ondrej Cink's new Mondraker F-Podium 2024

Presentation of the new F-Podium 2024

Mondraker has shared live and from the Les Gets circuit the launch of its new Mondraker F Podium 2024 on its Youtube channel.

The Mondraker F-Podium 2024 evolves to a higher level

Although at first glance the Mondraker F-Podium 2024 retains the general lines of its previous version, the truth is that it has undergone a profound renovation. The frame has been stylized with much more direct lines and loses the previous shapes and overdimensions. A simpler structure has been achieved, but with better stiffness and pedaling and downhill capacity. We could say that they have managed to evolve the model to a higher level of efficiency.

The heart of the Mondraker F-Podium 2024 is a new rear swingarm that has been used to evolve the model to a higher level of efficiency.

Do you need suspension on your gravel bike?

Black Friday 2024 for cyclists

The Van Rysel NCR CF is a best-seller in carbon and is now discounted to a price few would imagine

When do helmets have to be changed? Do they have an expiration date?

A real workout saver of only 56 min on the turbo trainer

Cycling sunglasses on the outside or inside the helmet?

The most striking changes to the frame are found in the top tube, down tube and swingarm. But as you might imagine, these changes are not just for aesthetic reasons.

The rear triangle loses the diamond shape of the previous model, now it is a triangle.

The top tube is now completely straight and flat from the head tube to the saddle, it has lost the front curvature, something that is replicated in the vertical seat tube, which also loses the oversized shapes of the previous version and now allows the mounting of seat posts with longer travel. This results in a cleaner structure that not only looks that way, but also improves stiffness and lightness. The new frame is under 2 kg.

The top tube is now completely straight from the head tube to the saddle, it has lost the front curvature, something that is replicated in the vertical seat tube, which also loses the oversized shapes of the previous version.

F-Podium 2024 gains a second bottle cage located under the top tube

UPDATED ZERO SUSPENSION SYSTEM: Mondraker's legendary suspension system gets an update

But the most important innovations are found in the central and rear area of the Mondraker F-Podium 2024. Its swingarm and linkages have been completely redesigned in what Mondraker has re-branded as the UPDATED ZERO SUSPENSION SYSTEM. A virtual pivot with two connecting rods that manages like no other to separate the behavior of the shock absorber from the pedaling and braking forces. The entire system is now more compact and is located in a lower position.

The UPDATED ZERO SUSPENSION SYSTEM has made it possible to completely change the model

The (more compact and lighter) shock absorber now has a more oblique and lowered position on the bike, pivoting directly on the swingarm. This new upgrade, which Mondrkaer has named the UPDATED ZERO SUSPENSION SYSTEM, offers the following advantages:

Increased initial sensitivity and greater absorption capacity
More progressive operation
Lighter system with better weight to stiffness ratio
More compact design with lower suspended mass
Allows longer seatpost lengths
More space in the front triangle to carry two bottle cages

The new monocoque carbon fibre linkage looks more robust than ever.

The new swingarm repeats the formula of simplifying shapes with more direct lines and gains stiffness thanks also to the development of two new connecting rods made of carbon monocoque. The new swingarm completely changes the behavior of the bike, gaining pedaling efficiency, improving rear stiffness and improving downhill sensitivity. In addition, we can now only see one of the vertical reinforcements linking the stays and chainstays, the left one that compensates for the transmission force, which has gained ground on the scales.

Along with improved pedaling capabilities, better efficiency and stiffness, the F-Podium 2024 also updates some of its geometry measurements, such as a more relaxed head angle of 66.5°, which upgrades its already excellent downhill capabilities.

Geometry of the new Mondraker F Podium 2024

In short, we can say that the new Mondraker F-Podium 2024 continues to mark its own path and now optimizes its successful commitment to an XC closer to Down Country.

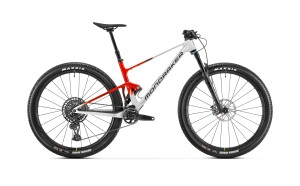

Mondraker F Podium 2024: models and prices

The new Mondraker F-PODIUM 2024 range loses the designations 'CARBON' and 'DC,' and is composed of 4 setups with the same frame made of Stealth Air Carbon ranging from 4,999€ to 10,999€. All models have 110mm rear travel and 120mm fork travel. All 4 models have 3 position remote lockout, both fork and shock and are available in 4 sizes; S, M, L and XL.
