We tested the KAS Tool Gabelknecht FAT: laser precision to align your power

Aligning and adjusting the handlebar or saddle of a bicycle seems like a simple task... until you realize that you've been riding with the bike "crooked" for weeks, not knowing if it's the wheel, the handlebar, or just your perception. This is where the KAS Tool Gabelknecht FAT comes into play, a tool that, far from being just another gadget, is positioned as an essential ally in the workshop to take precision to another level. We have tested it thoroughly and here is our experience.

Gabelknecht FAT: laser precision and German quality

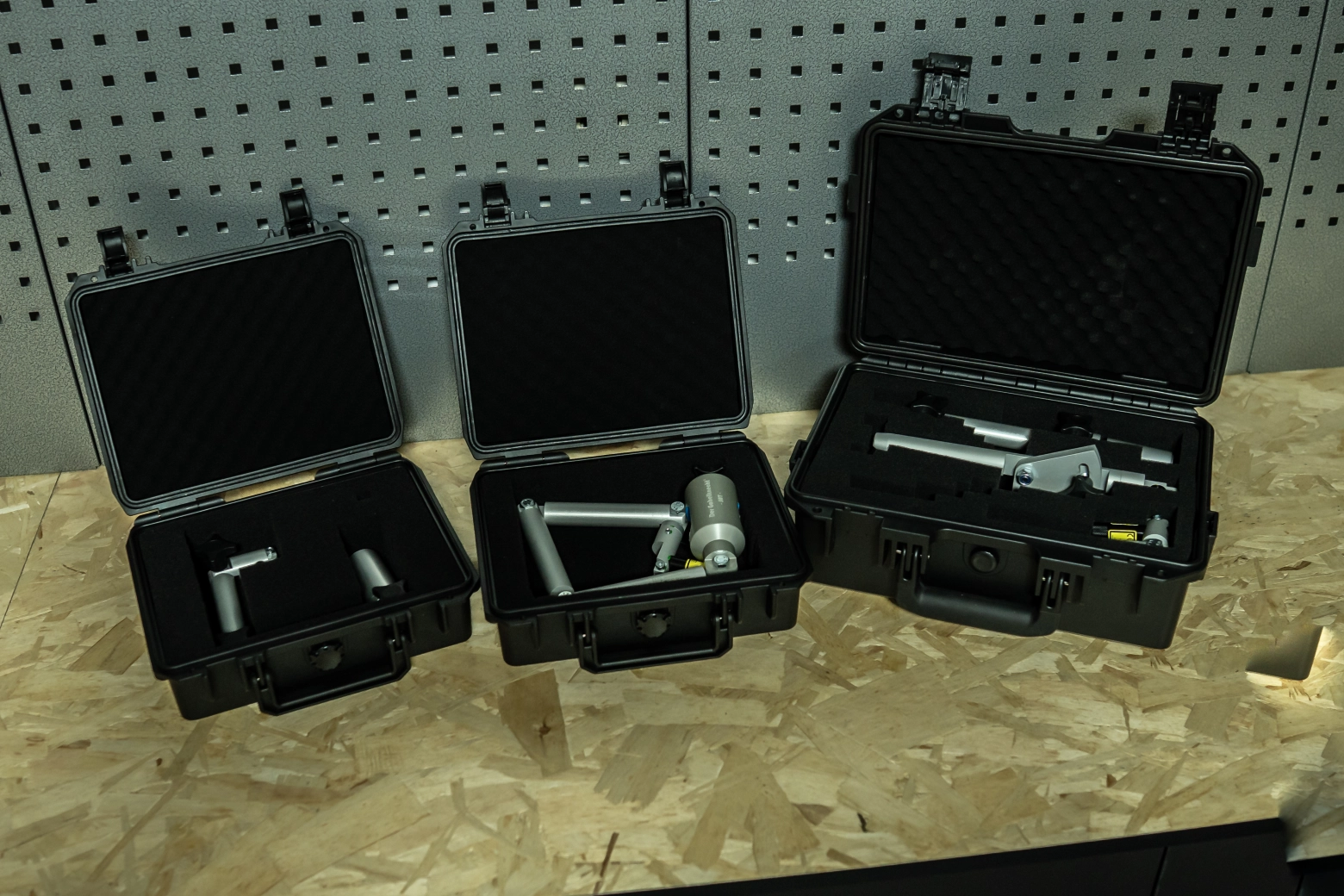

The Gabelknecht FAT is designed and manufactured in Germany, and as soon as you take it out of the case, you know you are dealing with something serious. It comes well presented, in a rigid case with compartments tailored for each component: the main body, the support legs, the laser pointer, and the adapters for different handlebar thicknesses. Nothing is there by chance. The construction is metallic, robust, and you can tell it is made to last in a demanding workshop environment.

The tool is placed on the bike's handlebar and its adjustable legs rest on the fork. Once leveled, the laser is activated, projecting a red line onto the front wheel. If the line is not perfectly centered on the tire, it means the handlebar is misaligned. It's that simple. What we used to adjust "by eye" now has an objective reference. We tried to force small misalignments, those that are not noticeable at first sight, and the laser revealed them instantly.

RECOMENDADO

Nico Denz the strongest in the breakaway in stage 18 of the Giro d'Italia in which Juan Ayuso abandoned

The trick of the bottle to count laps and other curiosities of the Orbea Fox Factory Team in Nove Mesto

Pogacar, Evenepoel and Vingegaard will face off in the Dauphiné

DJI adds fuel to the fire: releases the 1,000W of the Avinox motor in more modes and adds new functions

New Orbea Terra or a completely new model? This is the prototype spotted at Unbound Gravel 2025

How many calories are burned when cycling

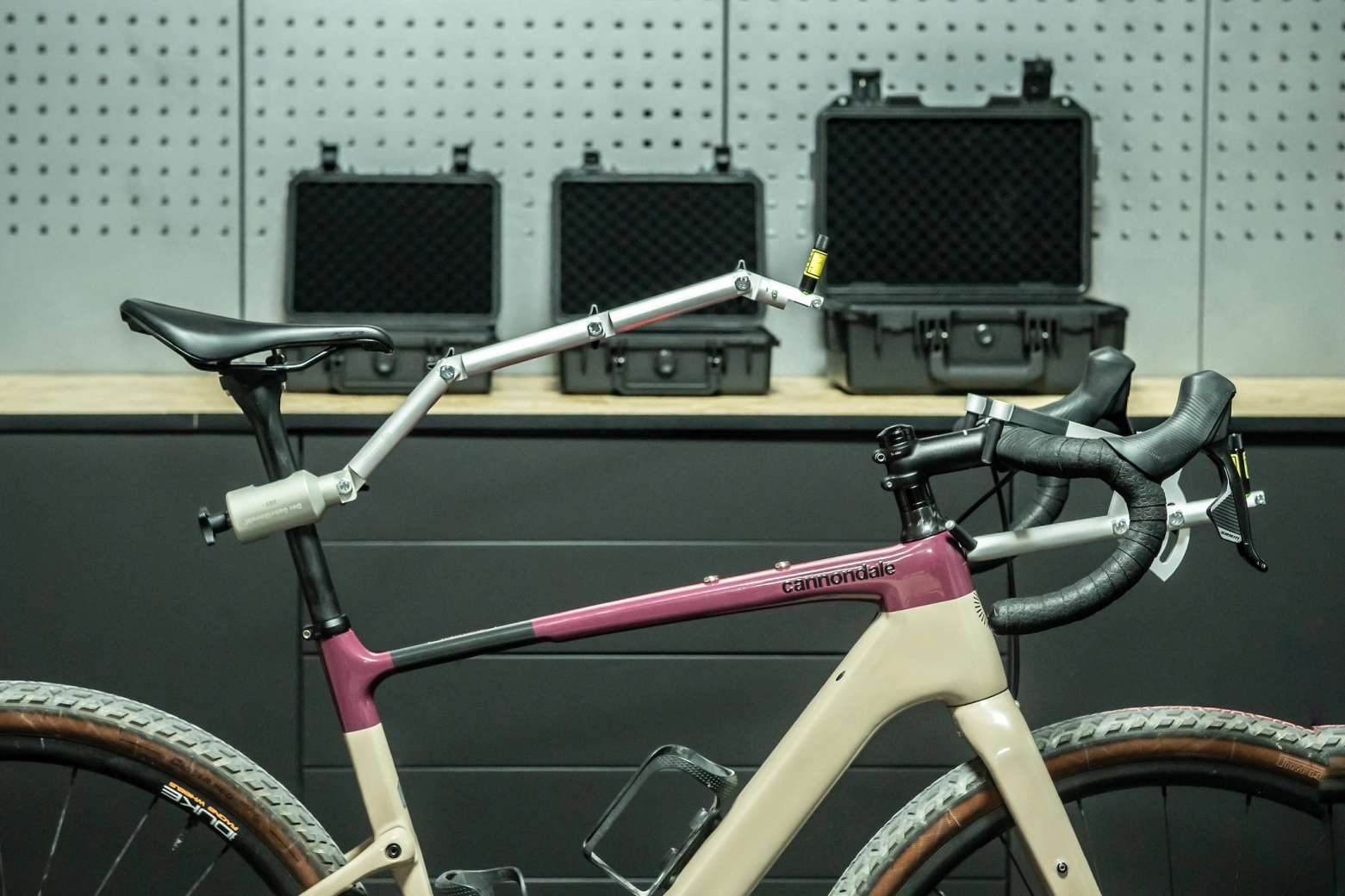

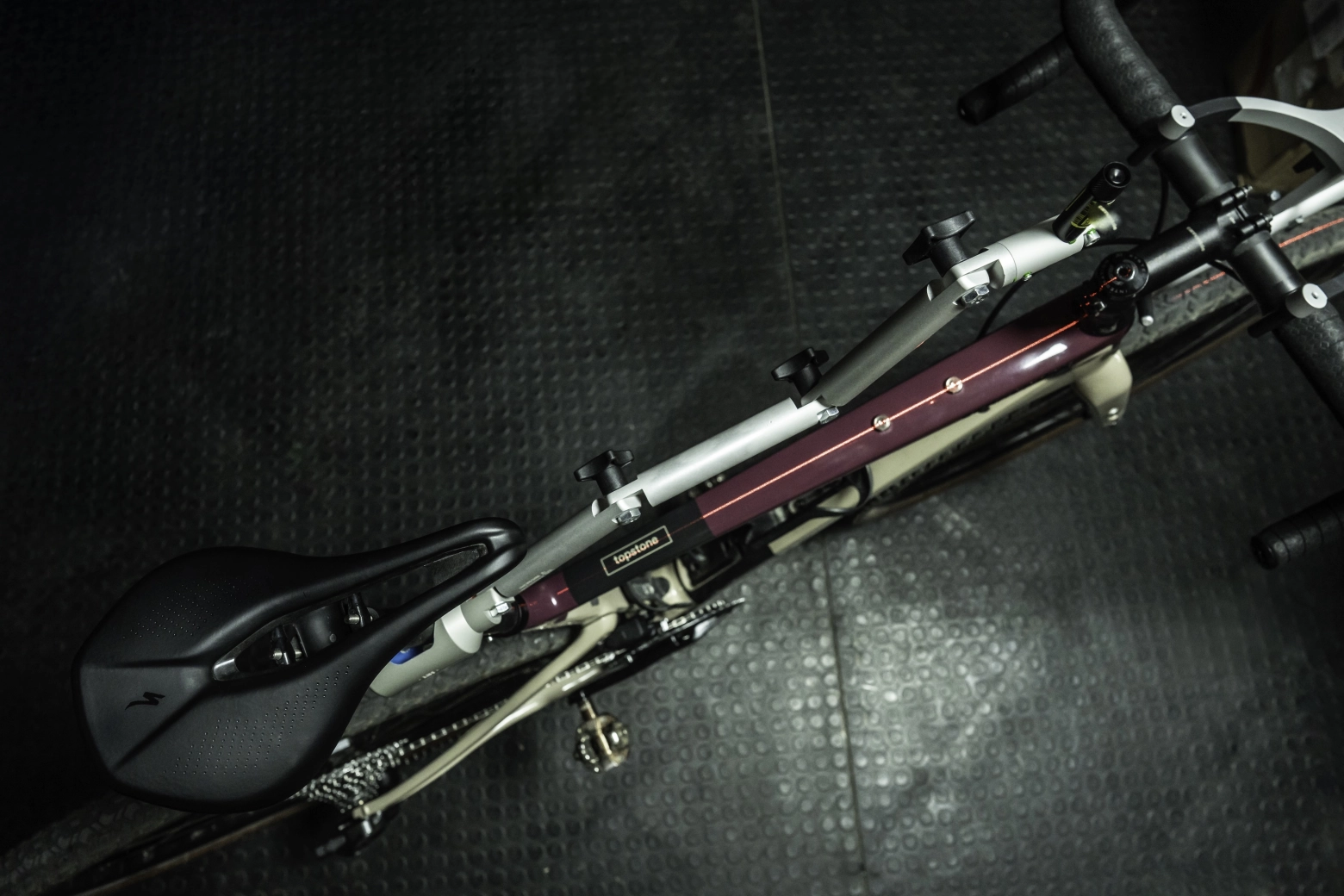

What really caught our attention was that the KAS Tool Gabelknecht FAT is not limited to the handlebar. The kit includes a second tool specifically for saddle alignment, which uses the same principle: laser precision. It attaches to the saddle rails and projects a straight line towards the rear wheel. This way, you can check if the saddle is perfectly centered with respect to the bike's longitudinal axis.

Is it useful? Yes, especially if you change saddle, seatpost, or frame frequently, or if you want to replicate your position exactly between different bikes. A slightly twisted saddle is not only uncomfortable: it can affect your pedaling, your body alignment, and even cause lower back or knee discomfort in the medium term.

Compatible with almost everything... with a small caveat

We tested the Gabelknecht FAT on several bikes, both MTB, gravel, and road bikes, and it adapted without any issues to all of them. Even aero handlebars or thick handlebar tapes were not an obstacle thanks to the included adapters. However, on some completely taped handlebars up to the stem, the base did not sit completely stable, although with a little care, you can work without any problem.

The laser has a sharp projection even in ambient light, and the tool in general conveys a sense of reliability. For domestic cyclists, it may seem a bit oversized, but for a mechanic or a very meticulous user, it is one of those tools that once you use it... you don't want to ride without it.

Conclusion: uncompromising precision comes at a price

The KAS Tool Gabelknecht FAT is not cheap, but it is not a tool to use once and store away either. It is an investment in precision, in ergonomics, and above all, in eliminating guesswork. Because when you build a bike from scratch or make a significant adjustment, the last thing you want is to be left wondering if you have aligned it correctly. With this tool, there is no margin for error: it is either aligned or it is not. And that, in cycling, is appreciated.

Currently, the KAS Tool Gabelknecht FAT is available at R2-Bike for 295.00 €, including VAT. You can purchase it directly on their website.
